Installing Guacamole

Guacamole

Date of Release: Dec 30, 2021 

Features 

Apache Guacamole is a clientless remote desktop Gately supporting standard protocols like VNC and RDP.

Web URL 

http://device_ip:8082/guacamole/#/

Setup Steps 

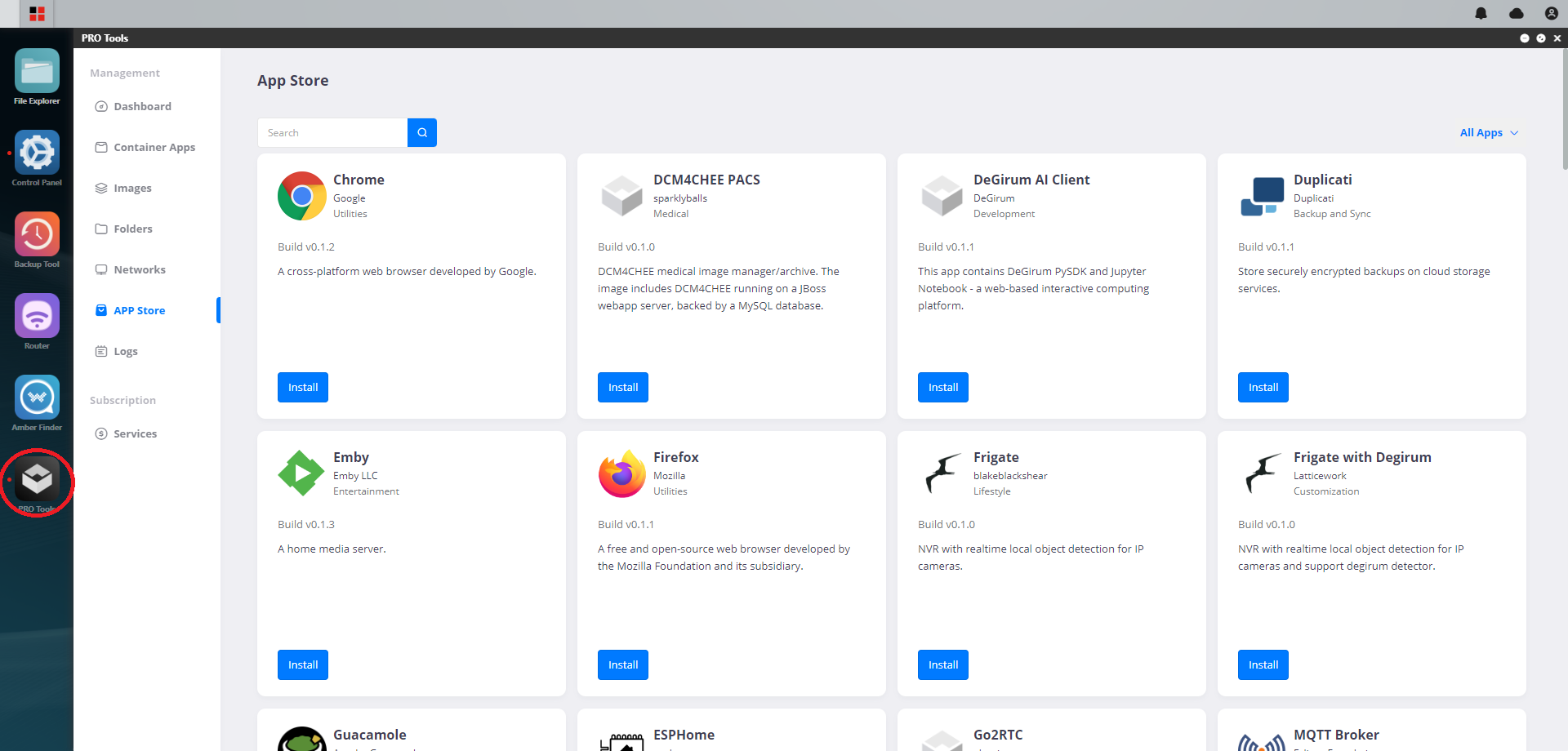

1. Open PRO Tools. Click on APP Store and install Guacamole

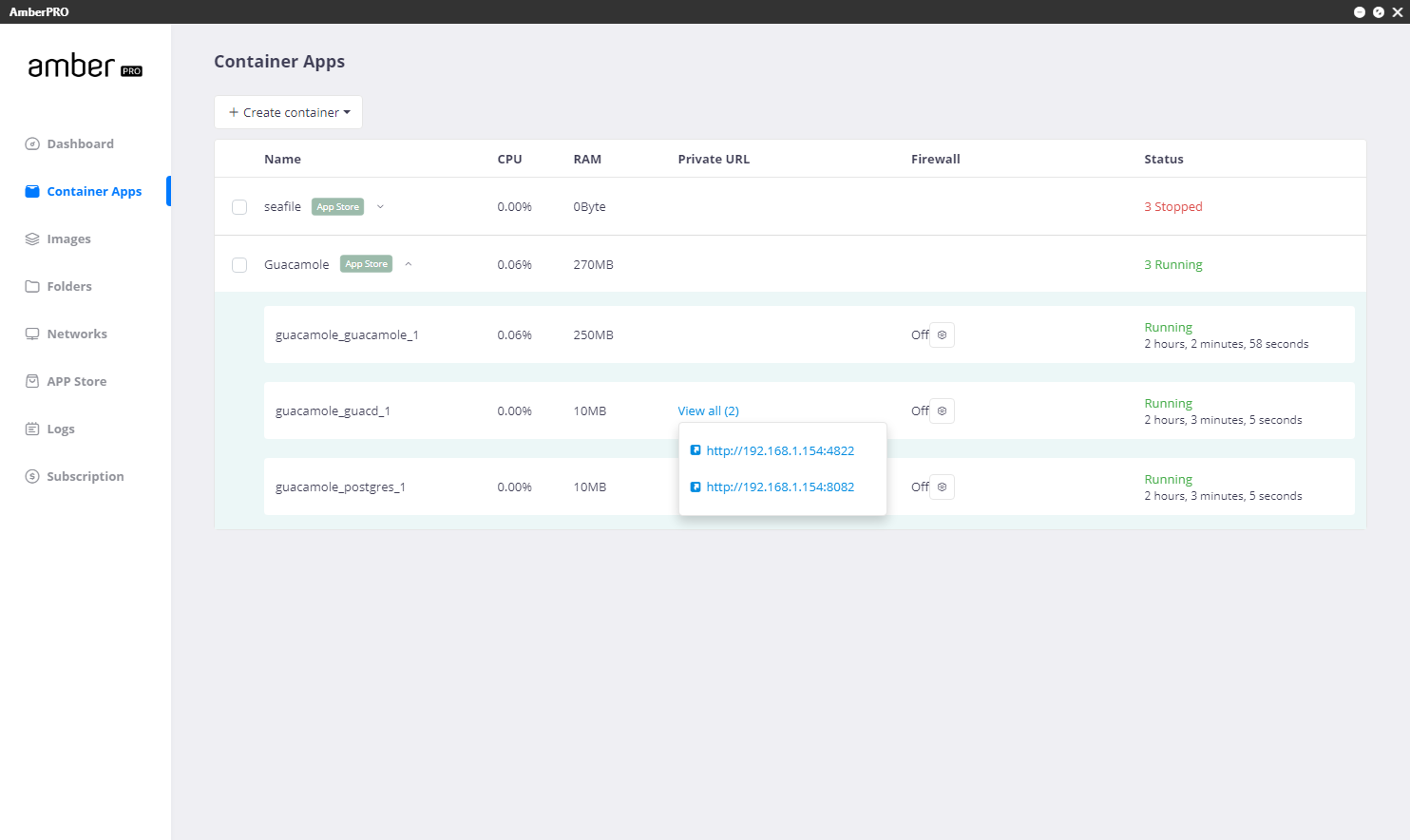

2. Go to Container Apps and click on Guacamole. Click on the drop-down menu and click ‘view all(2)’ to open the URL ending in http//your_ip:8082 paste it into your web browser and add ‘/guacamole’ to the end.

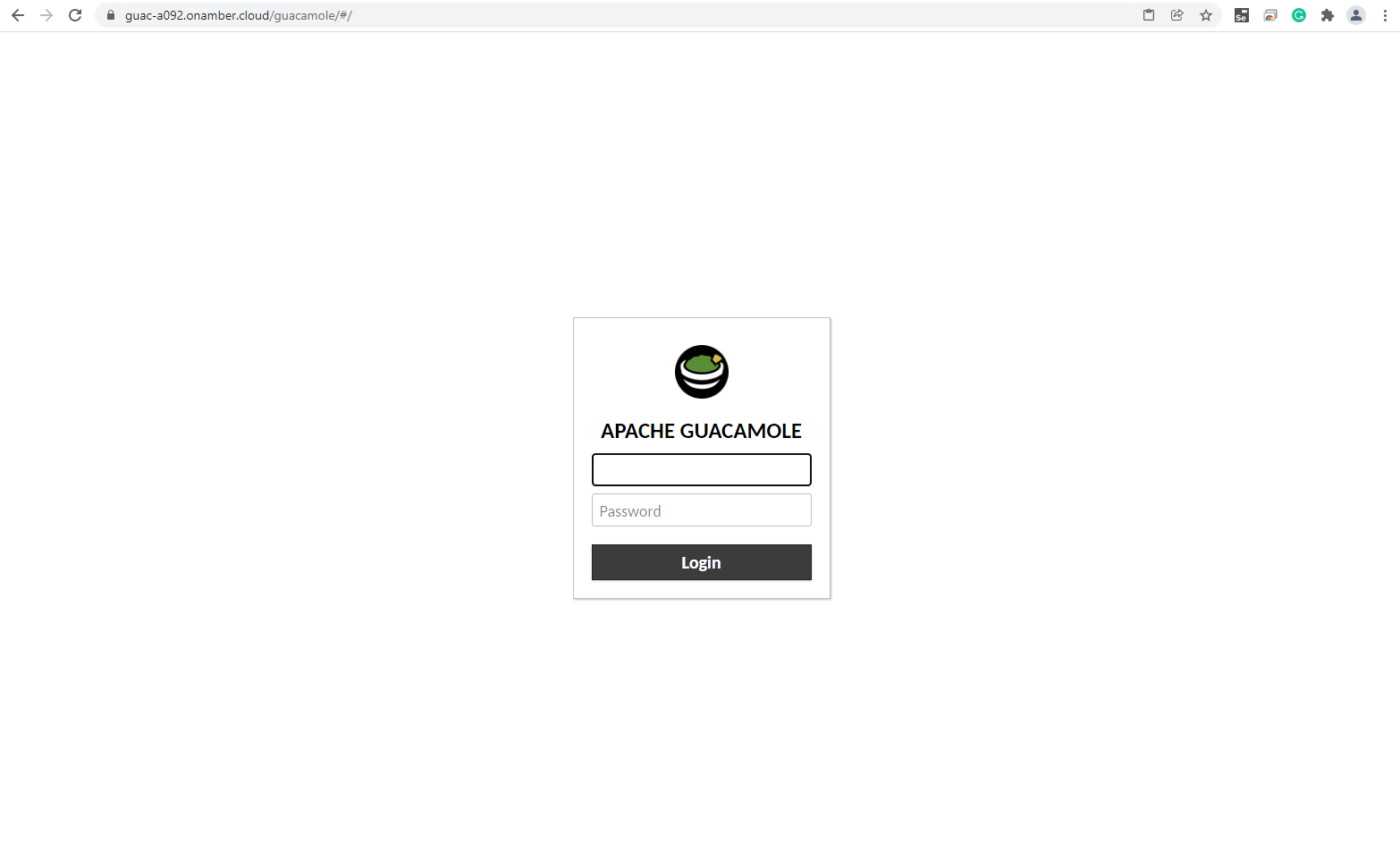

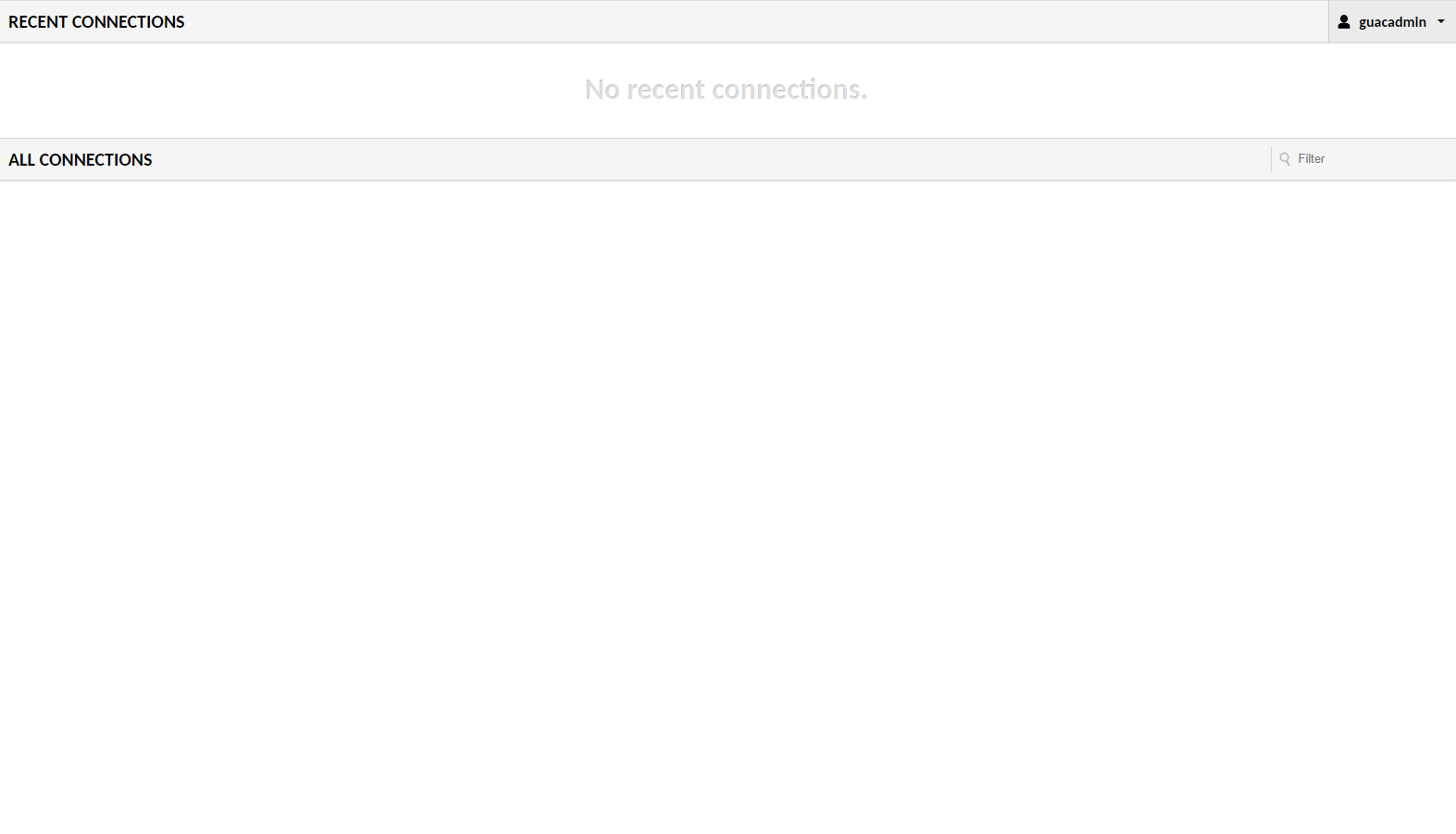

3. Enter credentials on the APP Store page. Log in to the home page.

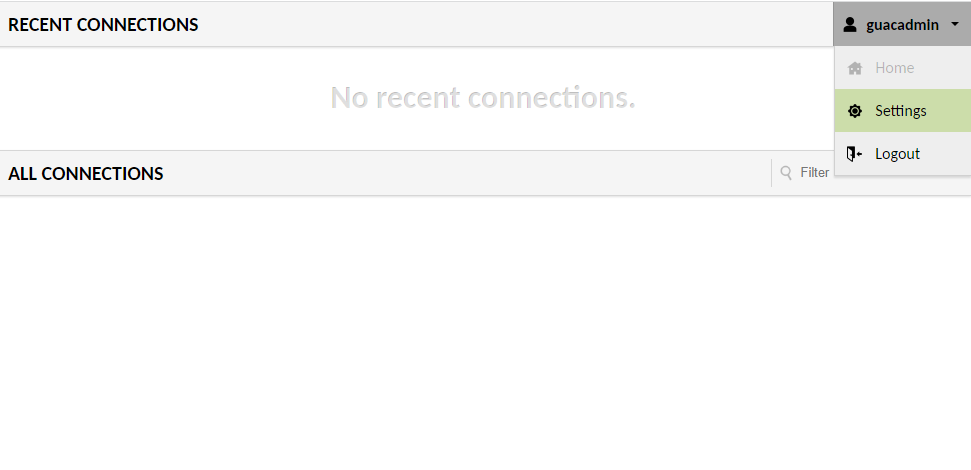

4. Select the account and click on Settings.

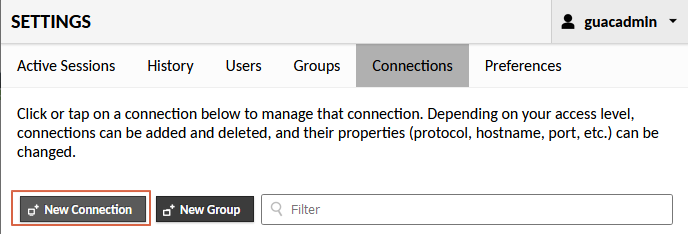

5. Select Connection -> New Connections

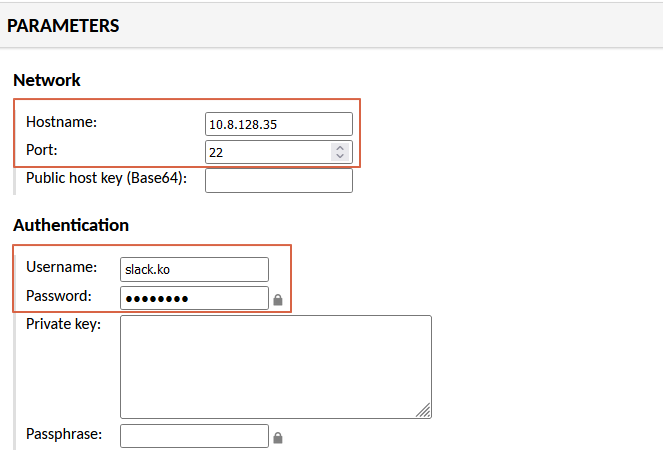

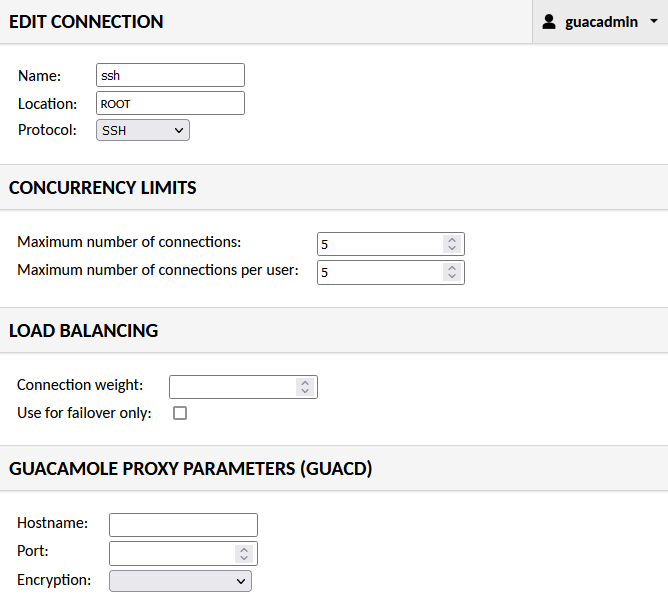

6. Here is an example of a ssh configuration.
   Enter in hostname, port number, and password.
7. Here is an example of vnc configurations.
   Enter hostname, port, and username/password.

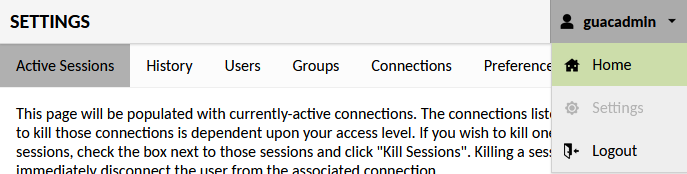

8. select menu -> Home.

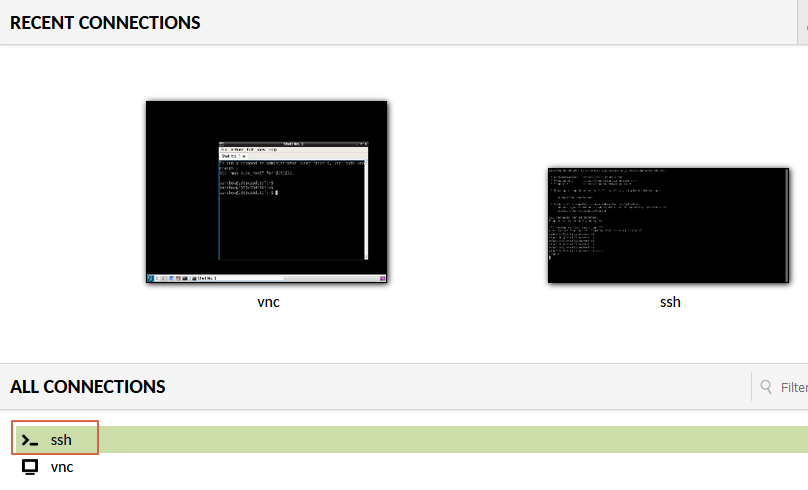

9. Click a connection to start.

then you can connect to ssh/vnc. Setting up AmberAnywhere

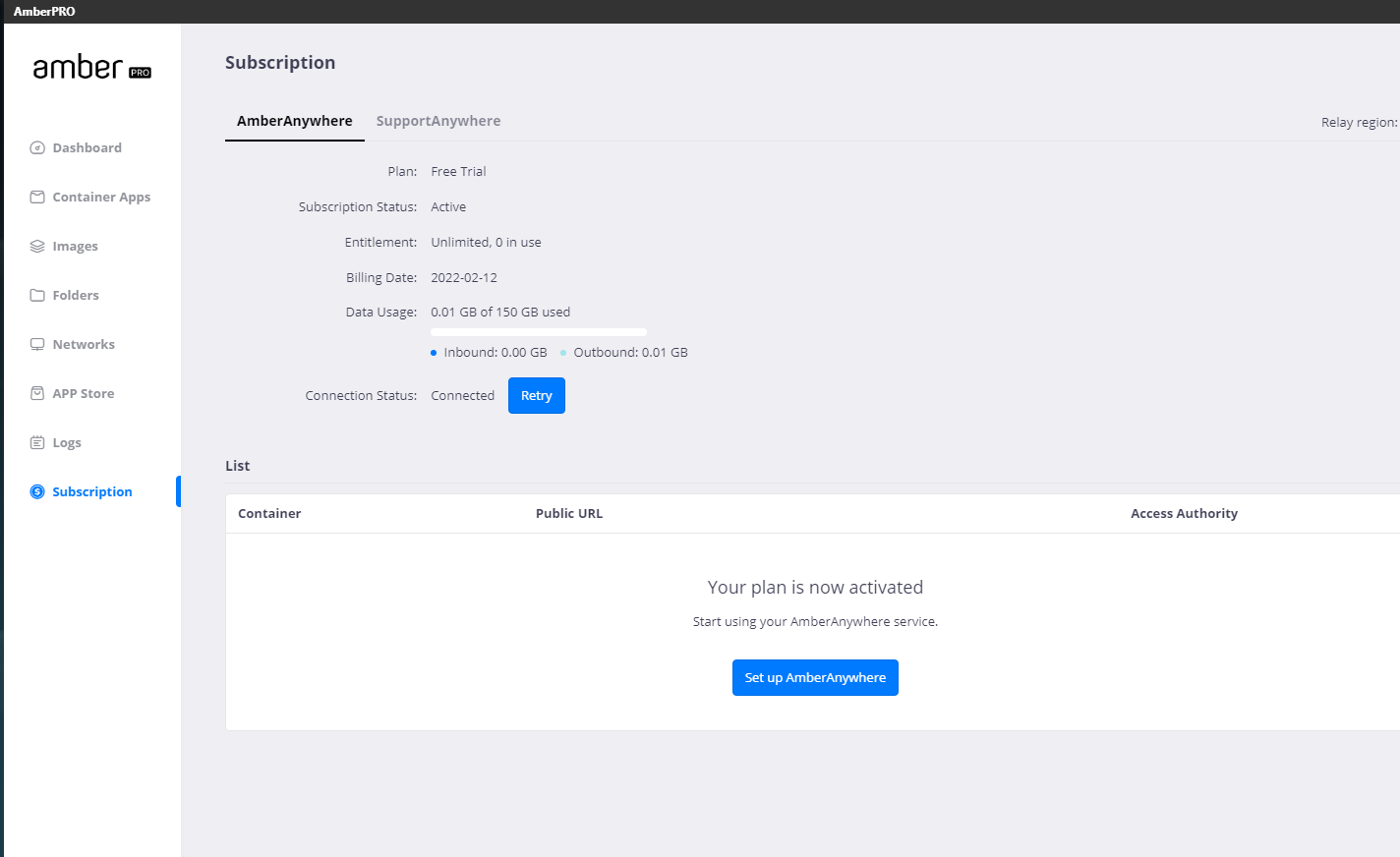

1. Go to Subscription and click Set up Amber Anywhere.

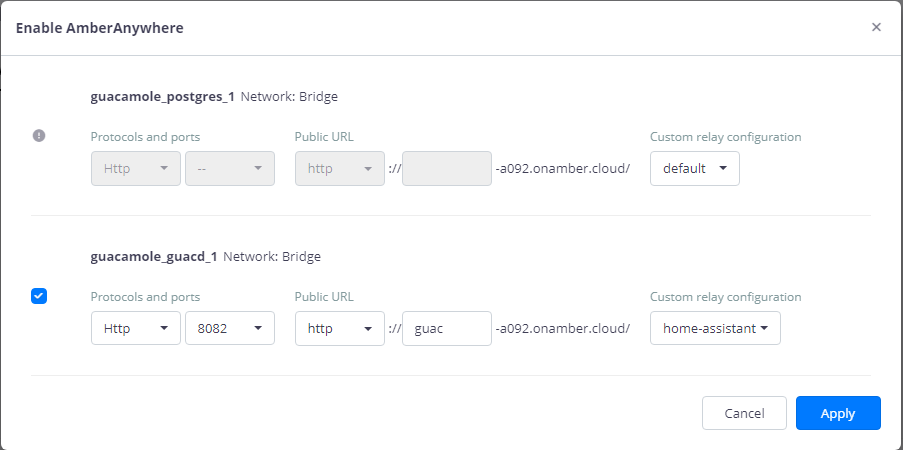

2. Click on the check box. Enter in information. Note the custom configuration. Click Apply.

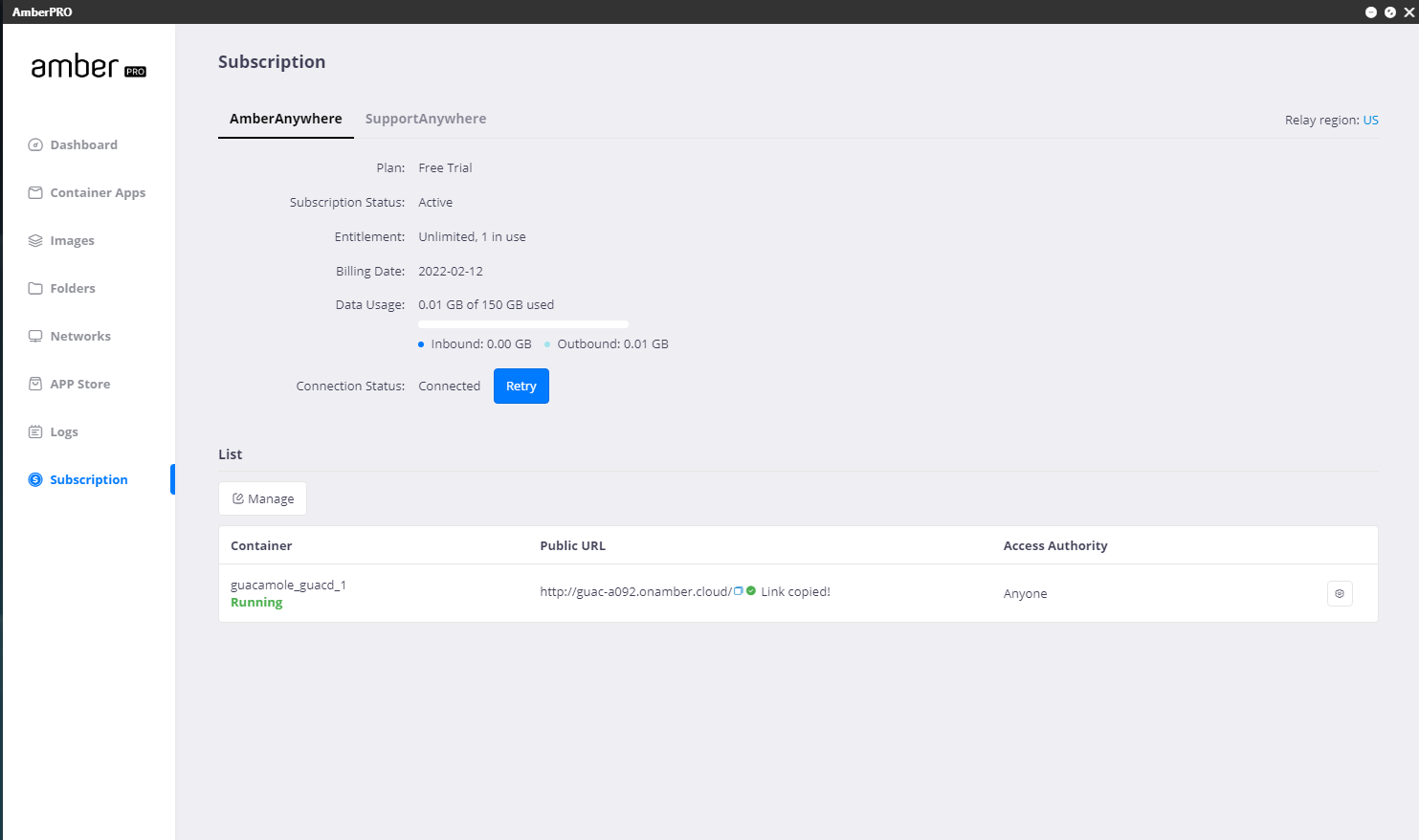

3. Copy the URL shown.
4. Add '/guacamole' at the end or URL to access using AmberAnywhere.

Note: for more information, visit https://guacamole.apache.org/. The link is not affiliated with PRO Tools.
